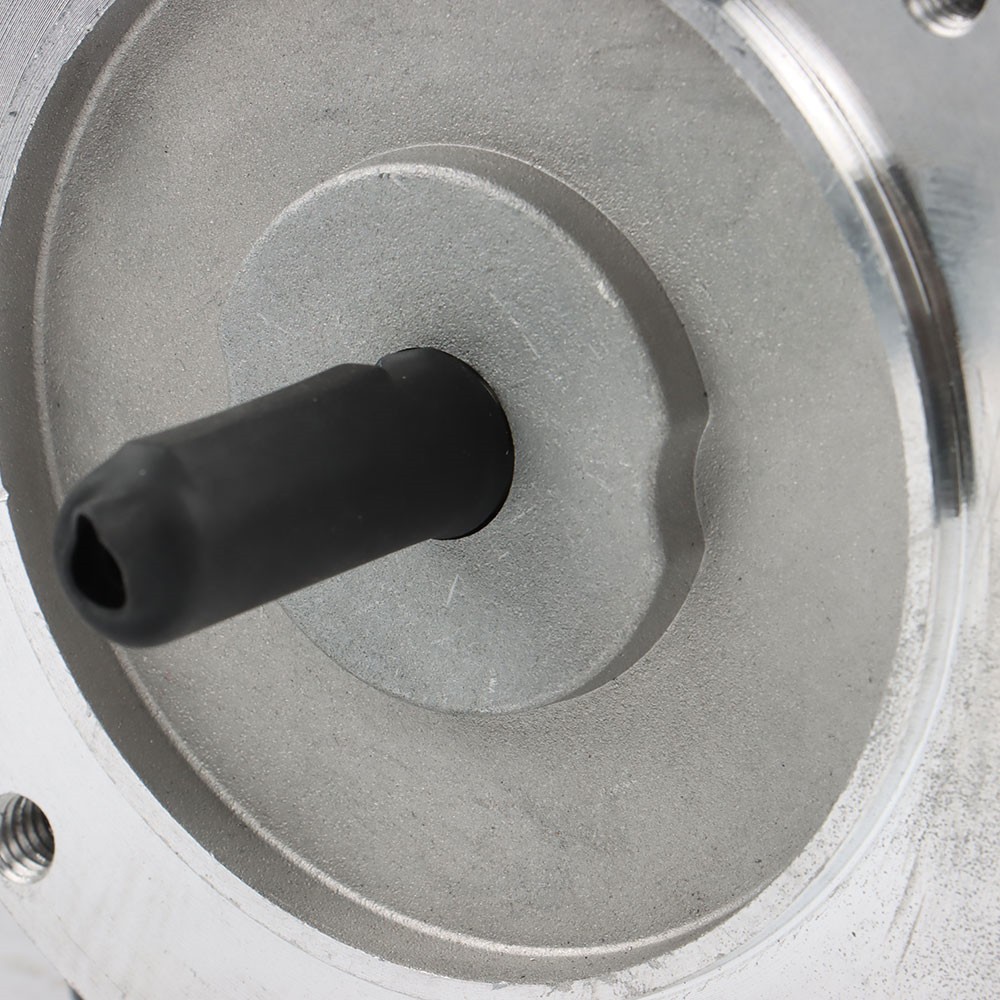

2 HP General Electric Motor 3 Phase 56C Frame 1800 RPM TEFC 230/460 Volt
USD $185.04
Condition : New
Free Shipping
Notify me when the price drops
We will email you if we find a lower price on this product!
Specification：
Electric Motor Specifications
3 Phase
2 Horsepower
TEFC Fully Enclosed
56C Frame
208-230/460 Volt
1800 RPM
Fan Cooled
Class F Insulation
C-Face
Removable Base
Premium Efficiency / Inverter Rated
Worldwide Electric Brand
Shaft Length: Approximately 1 7/8"
Keyed 5/8" Diameter Shaft
Current: AC
Full Load Amps: 7.2/3.6A
60 HZ
Features：
Brand New 2 horsepower, 3 phase electric motor. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.15 service factor, is a premium efficiency motor and rated for inverter duty. Also suitable for 50 hz operation with a 1.0 service factor. All the worldwide TEFC enclosed 56 frame fractional 3 phase motors have a removable base, with a C-face, and shaft slinger to keep moisture and contaminants from the end of the drive-end bearing for longevity.
Product Description：
Maintenance Measures
Clean the fuselage frequently and keep the surroundings clean.
When not in use for a long time, it is necessary to apply oil or anti-rust oil storage management on the body.
Often check the power control switch, power line is abnormal.
Check the oil level and add lubricant to the motor regularly.
Measure the voltage and current of the motor regularly.
Package List：
1 x General Electric Motor
1 x Manual
Item SpecificsCountry of Origin United StatesBrand findmallMPN IN2937402ALShaft Diameter 5/8 inEnclosure Type TEFC (Totally Enclosed Fan Cooled)Rated Load (HP) 2Current Type ACNominal Rated Input Voltage 208 V, 230 V, 460 VAC Phase Three PhaseService Factor 1.15IEC Frame Size 56CAC Frequency Rating 60 HzReversible/Non-Reversible Non-ReversibleShaft Type KeyedIP Rating IP55Insulation Class F (Max 311°F)NEMA Design Letter Design B (General Purpose)Protection Against Liquids Not ProtectedBase RPM 1750Custom Bundle NoFull Load Amps 7.2/3.6Modified Item NoColor BlackFeatures 2 Horsepower 3 PhaseTEFC Fully Enclosed 56C Frame 208-230/46Design Heavy DutyManufacturer Warranty 1 year
